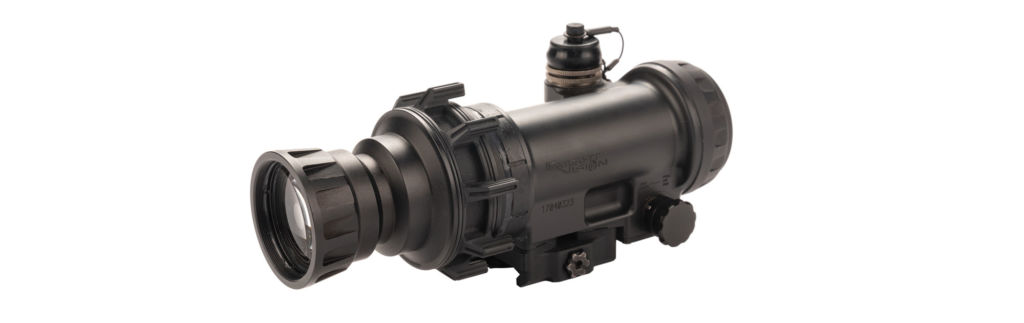

UNS-A3
Universal Night Sight Mid-Range
The UNS-A3 Clip-on Weapon Sight adds night capability to the existing day scope. Performance is on par with the PVS-22 with reduced bulk. The UNS-A3 utilizes the high performance GEN 3 intensifier tube in a proven design, where the refractive lens provides light collection in a lightweight design. The Knight Vision patented technology assures the accuracy of your range-tested day scope will not be degraded when the UNS-A3 is added in front of your existing optic. The UNS-A3 is designed for weapons such as the M4, M16, SR25 and similar configured rifles.Â
Specifications:
Size: 7.4″ (188mm) long, 3.3″ (84 mm) high, 1.5″ (38mm) to optical centerline
Weight:1.8lbs. (.80 kg) with one AA battery and lens cover
Finish: Flat Black Matte, Corrosion Resistant
Controls: Pull On/Off Gain Control Knob, Manual Focus Ring
Power: (US Patent 7,576,515 & 7,576,516) One standard AA battery, or one CR 123 battery (Single Interchangeable Battery?)
Battery Life: Exceeds 24 hours, CR 123 battery exceeds 36 hours
Mount: KAC quick attach / detach to MIL-STD-1913 rail or equivalent
Waterproof: 3 ft. for 4 hours
Optical Characteristics:
Operating Modes: Clip-On Weapon Sight
Lens Design: 62 mm Refractive Telephoto Lens Design
Magnification: 1X (unity)
Focus Range: 20 Meters to Infinity
Image Intensification: ANVIS 18mm Configuration Image Intensified Tubes High FOM, white or green, manufactured by Elbit USA, L3- Harris, or Photonis(exportable models available
Performance Characteristics:
Range: Recognize a Standing Man under Starlight: >500m
Recognize a Standing Man under 1/4 Moon: >700m
Recognize a Vehicle Under Starlight: >850m
Recognize a Vehicle under 1/4 Moon: >1000m
Bore Sight (US Patent 7,143,359) <.5 MOA, no change to daysight point of impact
Boresight Retention: <0.5 MOA over 300 rounds, 300 WIN MAG firing Schedule
Weapons Certification: Tested for use on weapons up to and including .50 caliber rifles
Cheek Weld: Unchanged
Eye Relief: Unchanged
Bullet Impact: Unchanged
